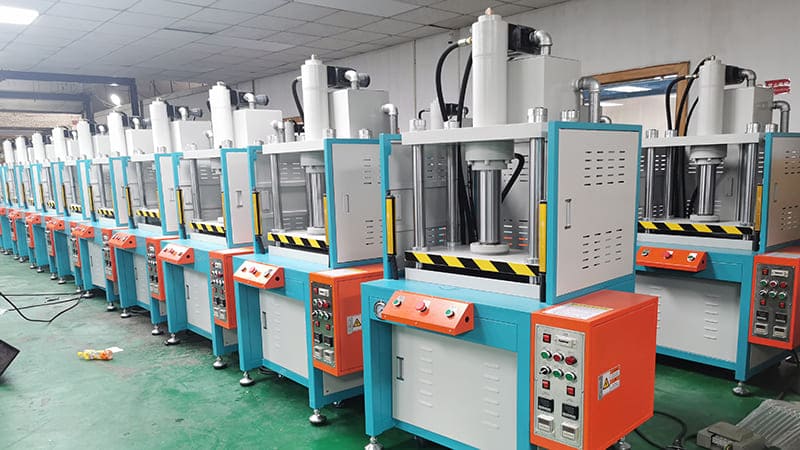

Introduction of 4 post hydraulic press（four column hydraulic press）
What is 4 post hydraulic press？
4 post hydraulic press is a kind of machine with liquid as the working medium, which uses liquid static pressure to transfer energy for realizing various processes. A four post hydraulic presses is composed of four columns. The upper and lower beams form the frame of the hydraulic press, which is usually used to accomplish pressing processes and press molding processes.
For example, forging, stamping, cutting, embossing, forming, deep drawing, shaping, straightening, press fitting, bending, riveting, etc. The principle is based on Pascal’s law, which states that when the liquid is confined in a container and pressure is applied to it, the liquid will transfer that pressure uniformly throughout the container. This makes the mechanical press ideal for use in situations where a large uniform force is required, and hydraulic presses are widely used in manufacturing and other industrial applications.
How hydraulic presses work？
The working principle of 4 post hydraulic presses: Hydraulic oil (working medium) is delivered to the integrated valve block (common combination of various valves and oil circuit blocks) through the oil pump, and it is distributed to the upper or lower cavity of the hydraulic cylinder under the action of various valve blocks to push the piston. Under the static pressure of the liquid, the hydraulic cylinder is made to perform an action cycle.
The benefits of using four columns hydraulic presses
The four columns hydraulic press is a versatile machine that can be used for a variety of applications. For example,
– Forging
– Stamping
– Punching
– Deep drawing
– Shaping
– Correcting
– Press fitting
– Bending
– Riveting
etc.
The parameters and functions of the 4 post hydraulic presses can be customized.

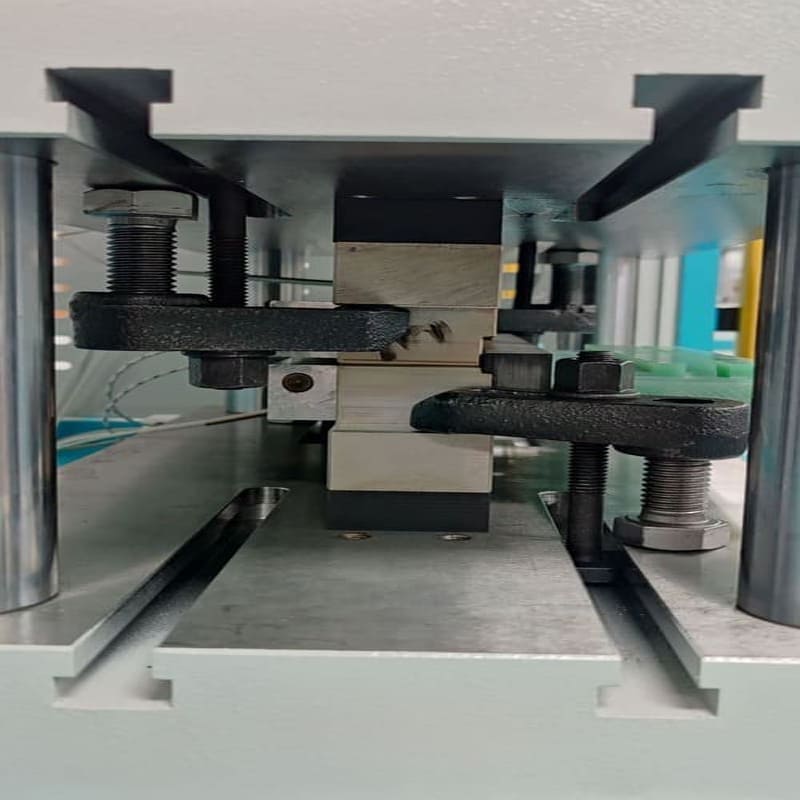

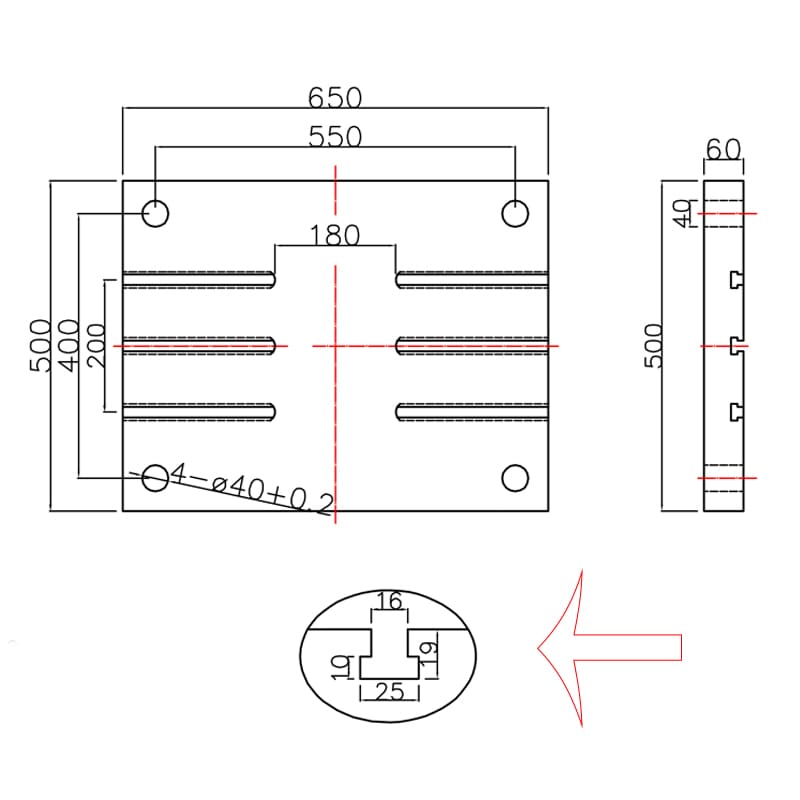

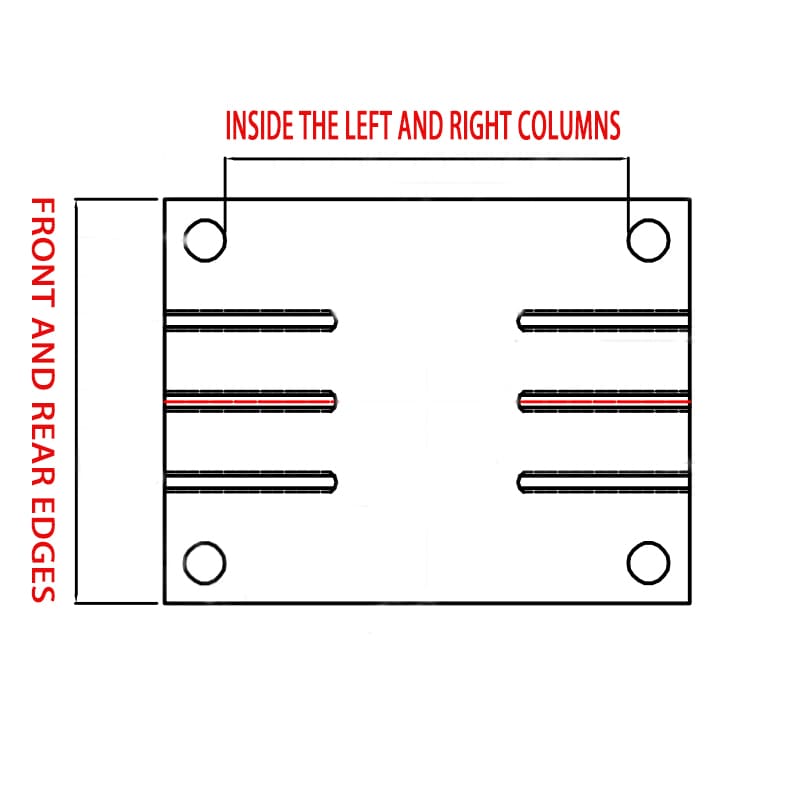

Although we provide standard table sizes based on typical process usage, we usually customize the most appropriate worktable area, style and function to fit the customer’s specific production requirements and the parameters of the process and mold. The style of worktable can be customized according to requirements. For example, plane, slotting, threaded holes, blanking,etc. The most common slotting method is the T-slot, which is generally M12 or M16 specification. In order to accommodate the mold, the worktable of four post presses can be designed to a specific size. The machine meets the production demands, and is suitable for parts manufacturing in almost every industry.

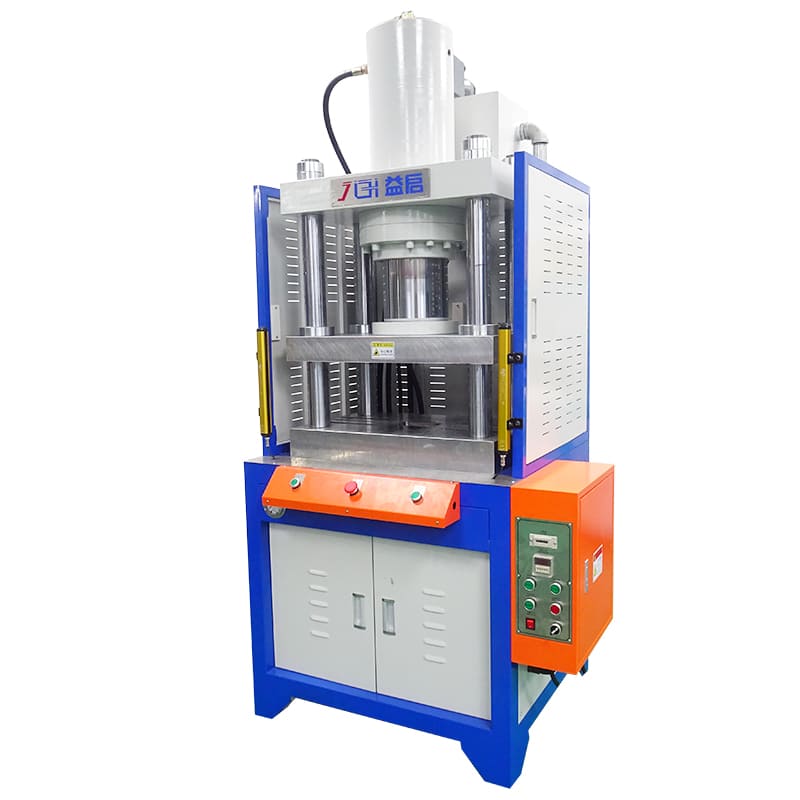

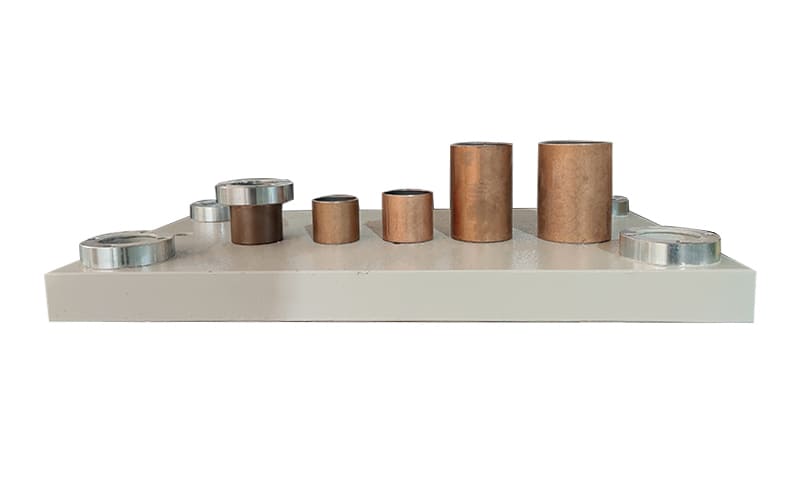

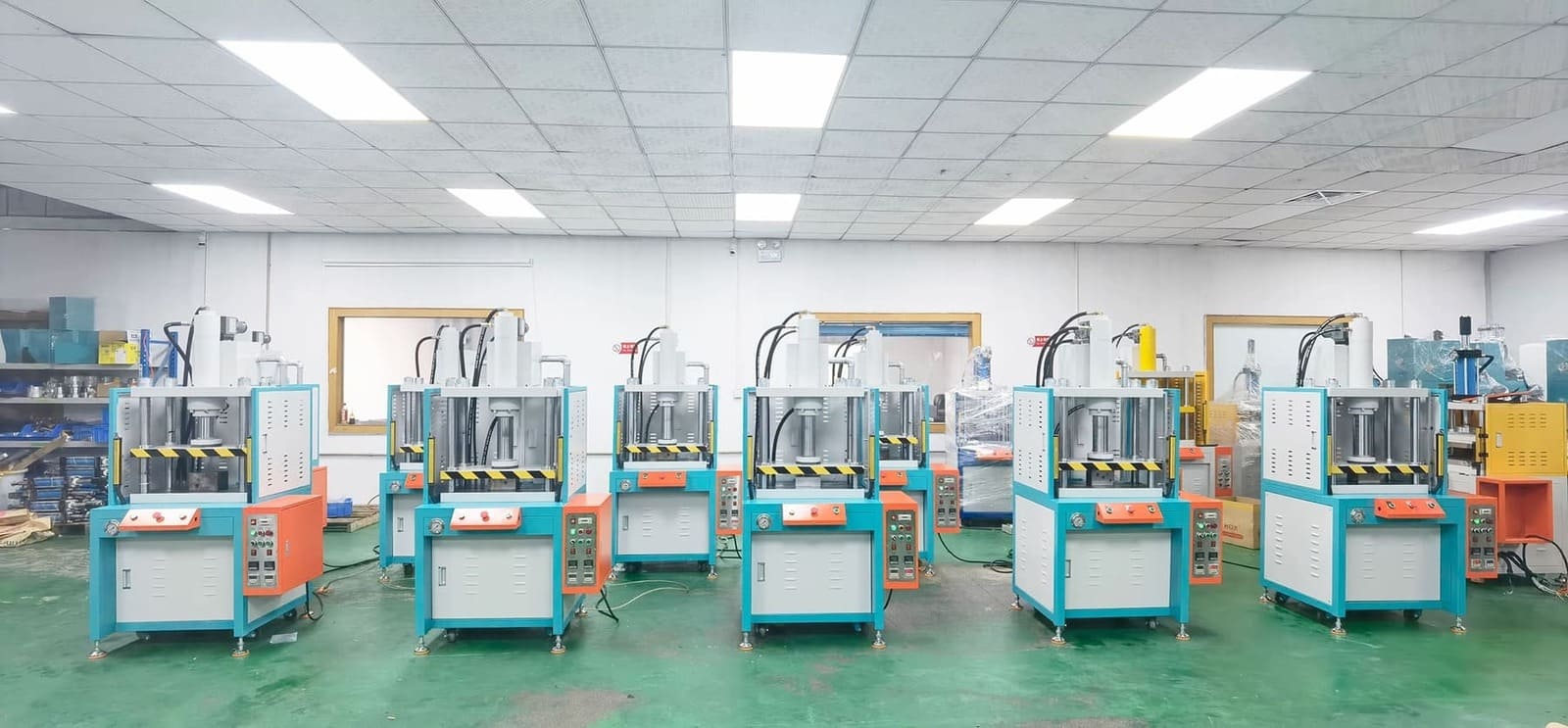

With liquid as the energy transmission medium, the hydraulic presses adopts the structure of four columns and three plates. Four columns are added with precise guide sleeve to control the vertical accuracy, so the parallel accuracy of the upper movable plate and the lower table at any point can be within ±0.02mm. In the standby state of the hydraulic press, the noise of the movable board does not exceed 73 dB when moving up and down.

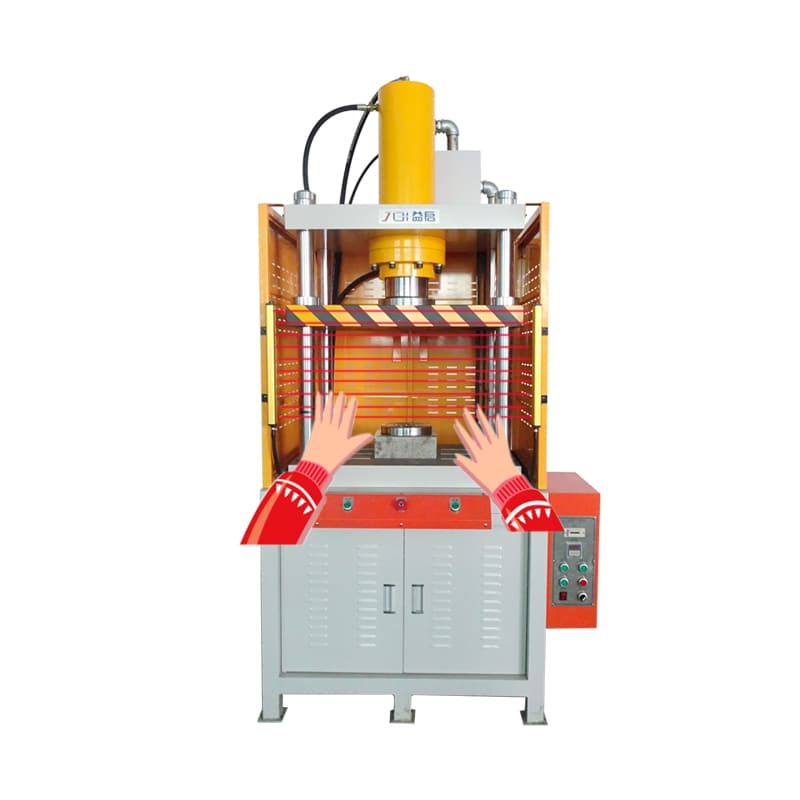

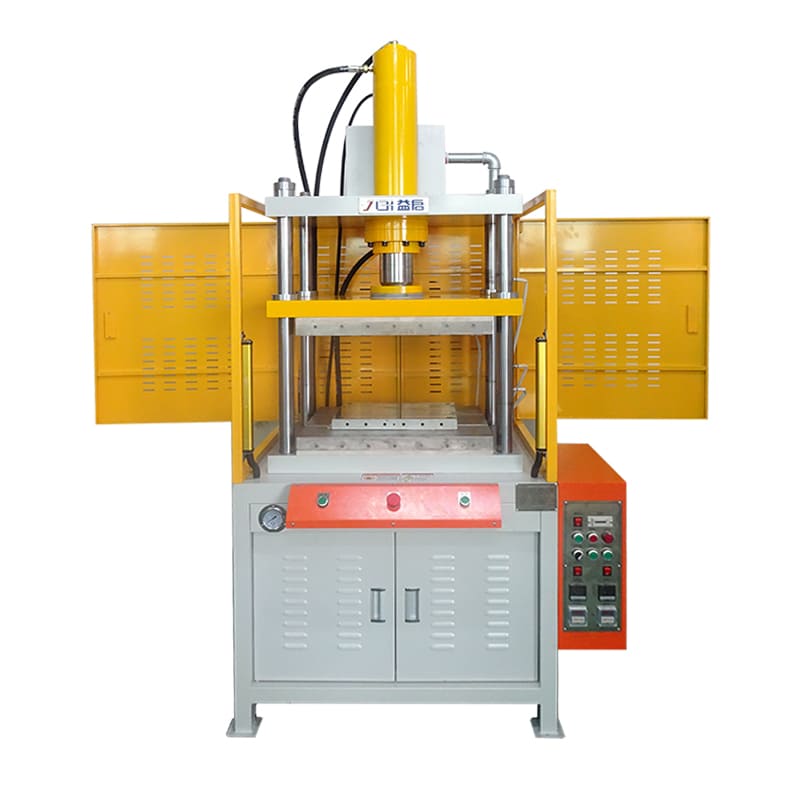

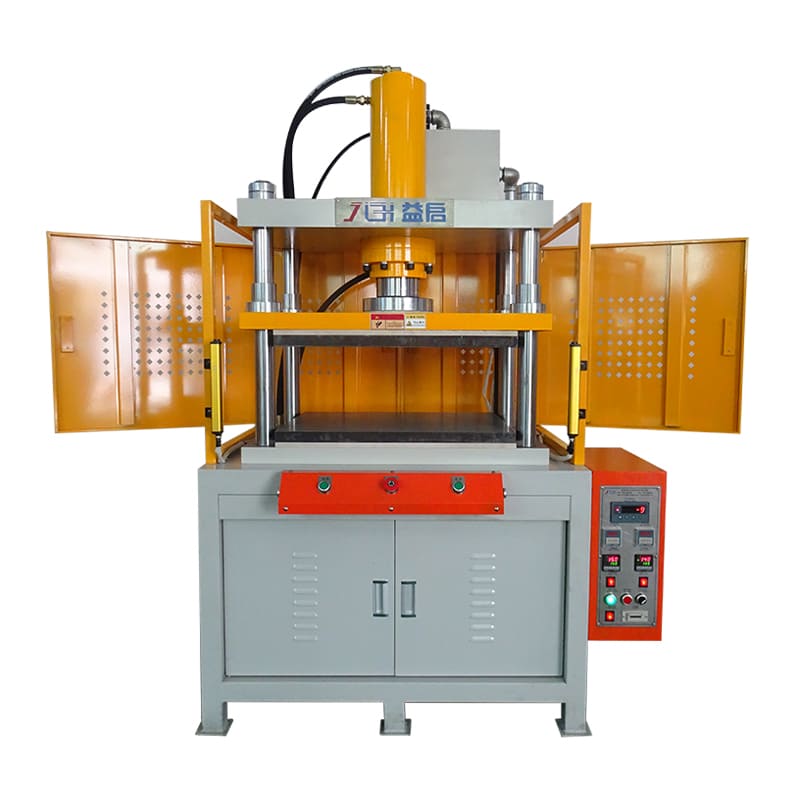

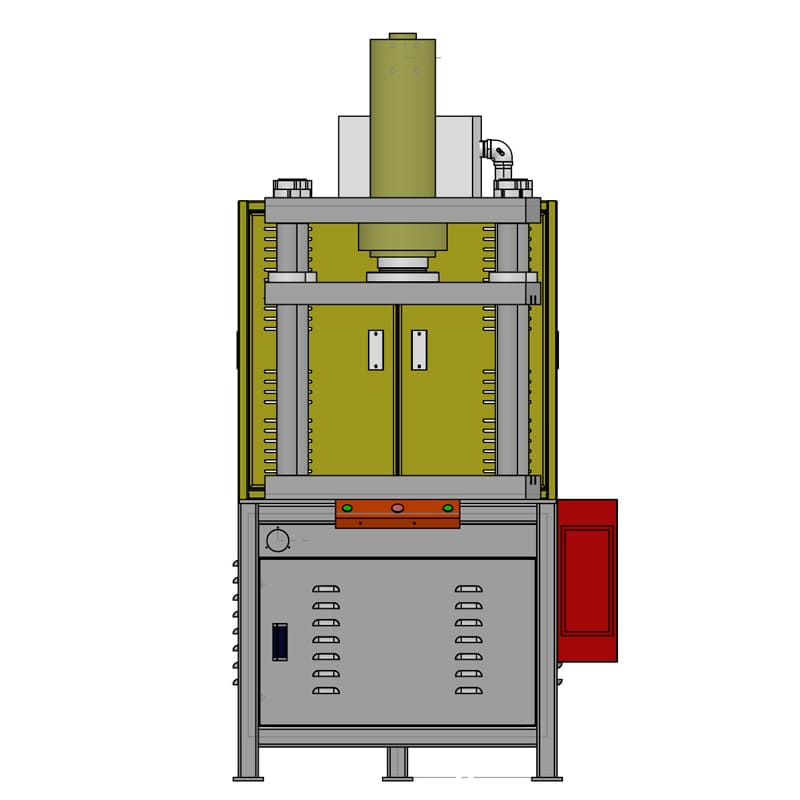

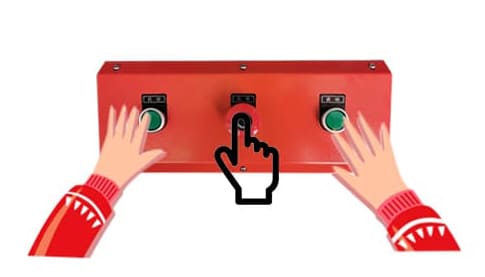

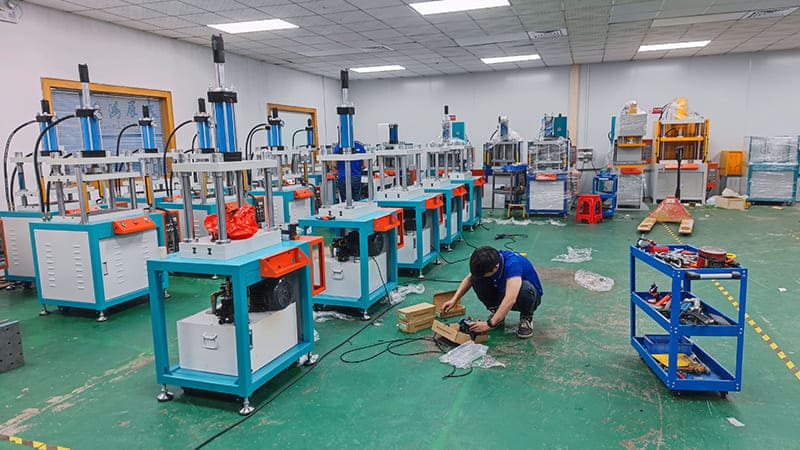

In the design of the fuselage frame, the 4 Post hydraulic press adopts the four sides open structure. Safety devices are set in front of the operation, and the other three sides with openable movable gate grating design. It is convenient to enter the working area from four directions when necessary. The flexibility is greatly improved on the premise of ensuring safety. The steel body of the frame is made of sheet metal to ensure enough rigidity to bear the load brought by the 4 Post hydraulic press. At the same time, the hydraulic station is integrated in the frame, which takes up a small area, saving space and maintaining beauty.
Characteristics of 4 post hydraulic press

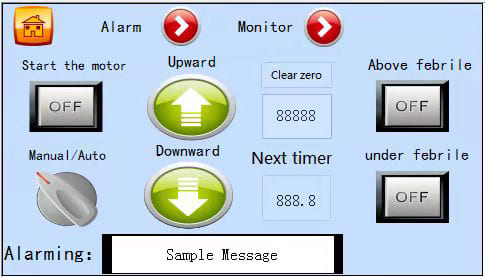

The 4 Post hydraulic press has independent hydraulic station power mechanism and electrical control system.It uses touch human-machine interface or physical buttons to realize various functions. It has three working modes: manual, semi automatic and linkage. The working pressure, pressing speed, pressing position and pressing time (pressure maintaining) of the four columns hydraulic press can be adjusted according to the needs of different processes, which greatly improves the flexibility of the 4 Post hydraulic press machine.
The design of the electrical control system of the 4 Post hydraulic presses generally adopts PLC control or ordinary electrical control. It has the characteristics of simple and intuitive action. Not only that, the maintenance and replacement of parts is convenient, more economical and practical. The PLC control and circuit of the 4 Post hydraulic presses can be changed later as needed.
Requirements for working medium of hydraulic press

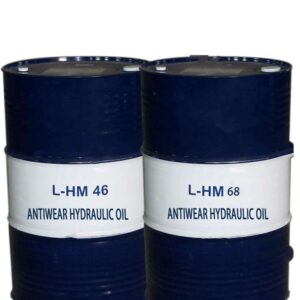

No. 46 or No. 68 anti-wear hydraulic oil is recommended for hydraulic machinists, and the oil temperature is within the range of 15℃-60℃. If the service time exceeds 2500 hours, the hydraulic oil needs to be replaced. Antifreeze must be added in winter or in extremely low temperature environment, and ensure that the proportion height of the oil level gauge is about 85% of the oil tank. Prevent sundries from entering the oil tank, resulting in the failure of the hydraulic press operation.
Maintenance and safety precautions of 4 post hydraulic presses
1.The operator of the hydraulic press must be trained and guided, and master the performance and operation technology of the hydraulic press before using the hydraulic press. Ensure that the operator carefully reads the instructions and operation instructions.
2.Before using the hydraulic press, it is necessary to clean all kinds of sundries on the hydraulic press and check whether the power supply of the hydraulic press is normal.
3.The installation of the hydraulic press mold must be carried out under the condition of power failure. It is forbidden to operate the hydraulic press mold by multiple people, and it is forbidden to touch the power switch, start button, foot switch, etc.
4.Ensure that the upper and lower molds are installed and fixed correctly without error, and the molds can be opened and closed normally.
5.Before the hydraulic press works, first start the equipment to idle for 3-5 minutes. During this period, check whether the oil level gauge of the oil tank meets the standard, whether the sound of the hydraulic press is normal, whether the hydraulic integrated valve block, hydraulic pipe, joint and hydraulic cylinder have oil leakage, and whether the functions of the limit device and safety protection device are normal. Manually adjust the required pressure, time and position.
6.Test the product workpiece, check whether the pressure is sufficient, whether the action of the hydraulic press is safe and reliable, and adjust the working pressure of the hydraulic press. The maximum pressure cannot exceed the rated pressure of the nominal force of the hydraulic press by more than 90%. After the tested products are qualified, they can be used in normal production. For different production processes, the pressure, time and position of the hydraulic press should be adjusted before normal use, so as to ensure that the machine and mold will not be damaged. It is forbidden for multiple people to operate the same hydraulic press at the same time, and it is forbidden to stretch their hands and other parts into the workbench. At the same time, ensure that the periphery of the hydraulic press is clean and free of other debris.
7.After the hydraulic press is completed, all power supplies should be cut off and the hydraulic press should be cleaned. Place common tools neatly and put them back in place.
Selection Guide Of Hydraulic Press
Three Elements Of Hydraulic Press Purchase
Tonnage (Ton), Workbench Size, Machine Opening And Closing Height And Hydraulic Cylinder Stroke.
Tonnage (ton)：First of all, we need to determine the tonnage required for the purchase of hydraulic presses. Among our common small hydraulic presses, there are several specifications: 1 Ton, 3 Ton, 5 Ton, 10 Ton, 15 Ton, 20 Ton, 25 Ton, 30 Ton, 40 Ton, 50 Ton, 60 Ton, 80 Ton, 100 Ton. In order to determine the production process, materials and specifications, the general choice will keep the margin. That is, when 10 Ton is required for processing the workpiece, we suggest to choose 15 Ton or 20 Ton machine to meet different needs.
Workbench size: We generally have conventional parameter configuration. When the conventional parameter configuration is not suitable, we will provide customized services to make our machine meet the production needs of customers. The size of the workbench is usually calculated according to the effective area. The workbench can be customized through plane, slotting, threaded hole, blanking, etc.
Machine opening and closing height and hydraulic cylinder stroke：The machine generally designs the opening height according to the tooling die. When the conventional parameter configuration is not enough, a slightly larger opening height can be customized to meet the needs of the tooling die. The stroke of the hydraulic cylinder determines the displacement distance, and the minimum state is complete closure. The closing height is usually based on the clamping height of the die.
